P2 Chapter 2: Advanced Trigonometry | A Level Mathematics (9709) AS Revision Notes

Introduction

Alright, so you've mastered the basics of sine, cosine, and tangent from P1. But what happens when the problems get more complex? That's exactly what this chapter is about – upgrading your trig toolkit for the big leagues. First, we'll meet the 'reciprocal' family: $sec$, $csc$, and $cot$. They might seem a bit extra at first, but they're essential for simplifying tricky expressions and solving new types of equations. Then, we'll dive into the compound and double angle formulae. These are your secret weapons for breaking down complex angles like $\sin(A+B)$ or dealing with expressions like $\cos(2x)$. Finally, we'll master the incredibly powerful R-formula, which lets us combine sine and cosine waves into a single, neat function. This is a total game-changer for solving equations like $a\sin(x) + b\cos(x) = c$ and finding maximum/minimum values. It's a packed chapter, but by the end, you'll be equipped to handle almost any trig problem the exam throws at you. Let's get into it!

Reciprocal Trigonometric Functions and Identities2.3

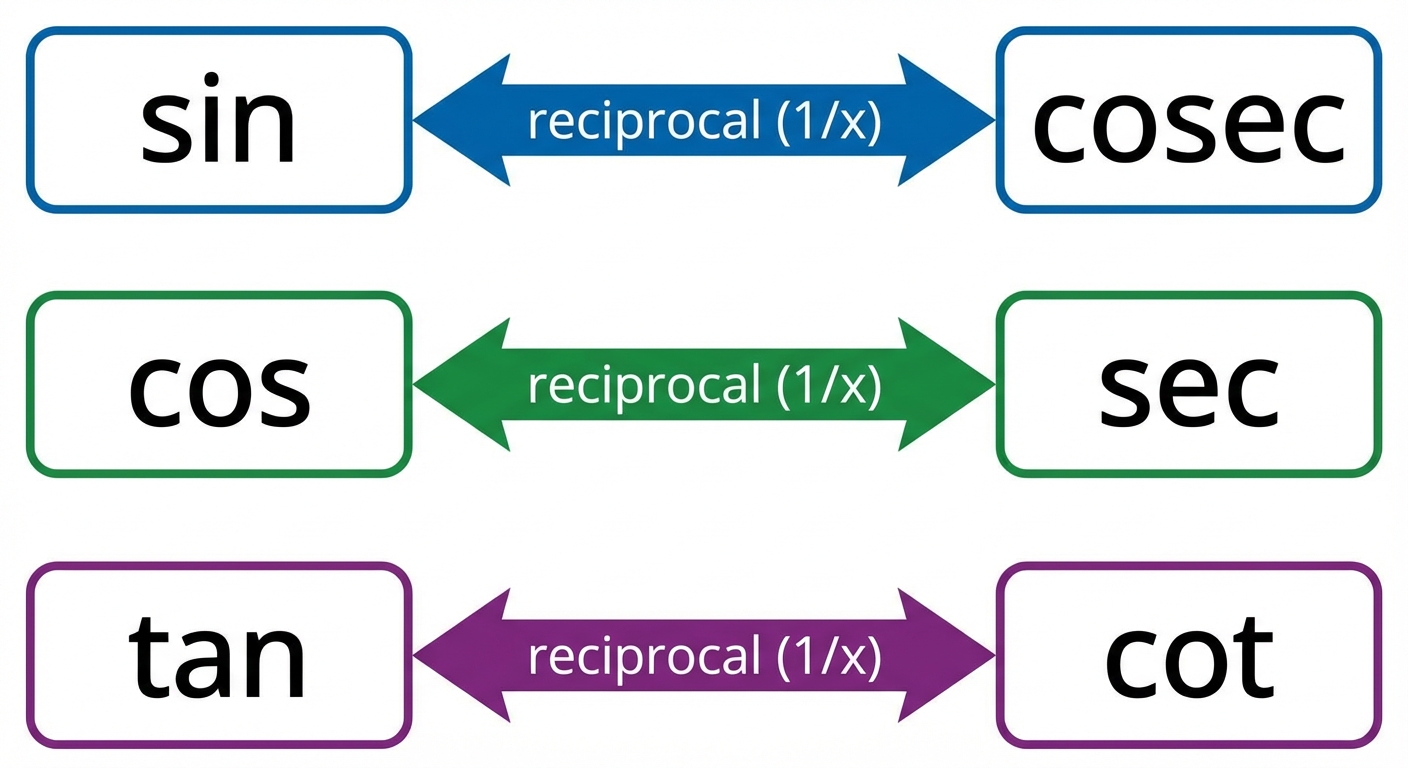

Alright, let's level up our trig game. You've mastered sin, cos, and tan, but now it's time to meet their lesser-known, but equally important, relatives: the reciprocal functions. Think of them as the 'upside-down' versions of our main trio. We have secant (sec), cosecant (cosec), and cotangent (cot). Their definitions are straightforward but crucial for your exams: $$ \sec(\theta) = \frac{1}{\cos(\theta)} $$ $$ \csc(\theta) = \frac{1}{\sin(\theta)} \quad (\text{or } \cosec(\theta)) $$ $$ \cot(\theta) = \frac{1}{\tan(\theta)} = \frac{\cos(\theta)}{\sin(\theta)} $$ A simple way to remember which pairs up with which: look at the third letter. Secant goes with cosine, and cosecant goes with sine. A diagram showing the three reciprocal pairs: sin <-> cosec, cos <-> sec, tan <-> cot, with arrows indicating the reciprocal relationship 1/x. Now, why do we care? Because these functions unlock two powerful new identities that are absolute staples in exam questions. They both stem from our old friend $\sin^2(\theta) + \cos^2(\theta) = 1$. 1. Divide everything by $\cos^2(\theta)$: you get $\frac{\sin^2(\theta)}{\cos^2(\theta)} + \frac{\cos^2(\theta)}{\cos^2(\theta)} = \frac{1}{\cos^2(\theta)}$, which simplifies beautifully to: $$ \tan^2(\theta) + 1 = \sec^2(\theta) $$ 2. Divide everything by $\sin^2(\theta)$: you get $\frac{\sin^2(\theta)}{\sin^2(\theta)} + \frac{\cos^2(\theta)}{\sin^2(\theta)} = \frac{1}{\sin^2(\theta)}$, which gives us: $$ 1 + \cot^2(\theta) = \csc^2(\theta) $$ These aren't just for show; they are your primary tools for solving equations that mix different trig functions. Mastering these is non-negotiable for university-level STEM courses, especially in calculus where integrals of secant and cosecant are common. Get these locked in!

Solving Equations with Reciprocal Identities2.3

Problem Solve the equation $2\tan^2(\theta) + \sec(\theta) = 1$ for $0^\circ \le \theta \le 360^\circ$.

Step 1 First, notice the equation mixes $\tan^2(\theta)$ and $\sec(\theta)$. Our goal is to convert it into an equation with only one type of trig function. The identity linking $\sec$ and $\tan$ is our key: $\sec^2(\theta) = 1 + \tan^2(\theta)$. We'll rearrange it to substitute for $\tan^2(\theta)$. $$ \sec^2(\theta) = 1 + \tan^2(\theta) \implies \tan^2(\theta) = \sec^2(\theta) - 1 $$

Step 2 Now, substitute this expression for $\tan^2(\theta)$ into the original equation. This move is crucial as it turns the problem into a quadratic equation in terms of $\sec(\theta)$. $$ 2(\sec^2(\theta) - 1) + \sec(\theta) = 1 $$

Step 3 Expand the brackets and rearrange the equation into the standard quadratic form $ax^2 + bx + c = 0$, where our variable $x$ is $\sec(\theta)$. $$ 2\sec^2(\theta) - 2 + \sec(\theta) = 1 \\ 2\sec^2(\theta) + \sec(\theta) - 3 = 0 $$

Step 4 Solve this quadratic equation for $\sec(\theta)$. We can factorise it just like a regular quadratic. $$ (2\sec(\theta) + 3)(\sec(\theta) - 1) = 0 \\ \Rightarrow \sec(\theta) = -\frac{3}{2} \quad \text{or} \quad \sec(\theta) = 1 $$

Step 5 Our calculator doesn't have a $\sec^{-1}$ button, so we need to convert back to the primary function, $\cos(\theta)$, by taking the reciprocal. Remember, $\cos(\theta) = \frac{1}{\sec(\theta)}$. $$ \cos(\theta) = -\frac{2}{3} \quad \text{or} \quad \cos(\theta) = 1 $$

Step 6 Finally, find all the angles for $\theta$ in the range $0^\circ \le \theta \le 360^\circ$. For $\cos(\theta) = 1$, the solution is straightforward. For $\cos(\theta) = -\frac{2}{3}$, we find the principal value and then use the CAST diagram to find the second solution in the required range. $$ \cos(\theta) = 1 \implies \theta = 0^\circ, 360^\circ \\ \cos(\theta) = -\frac{2}{3} \implies \text{Principal Value} = \cos^{-1}(-\frac{2}{3}) \approx 131.8^\circ \\ \text{Second solution (in 3rd quadrant)} = 360^\circ - 131.8^\circ = 228.2^\circ \\ \text{Final Solutions: } \theta = 0^\circ, 131.8^\circ, 228.2^\circ, 360^\circ $$

Compound and Double Angle Formulae2.3

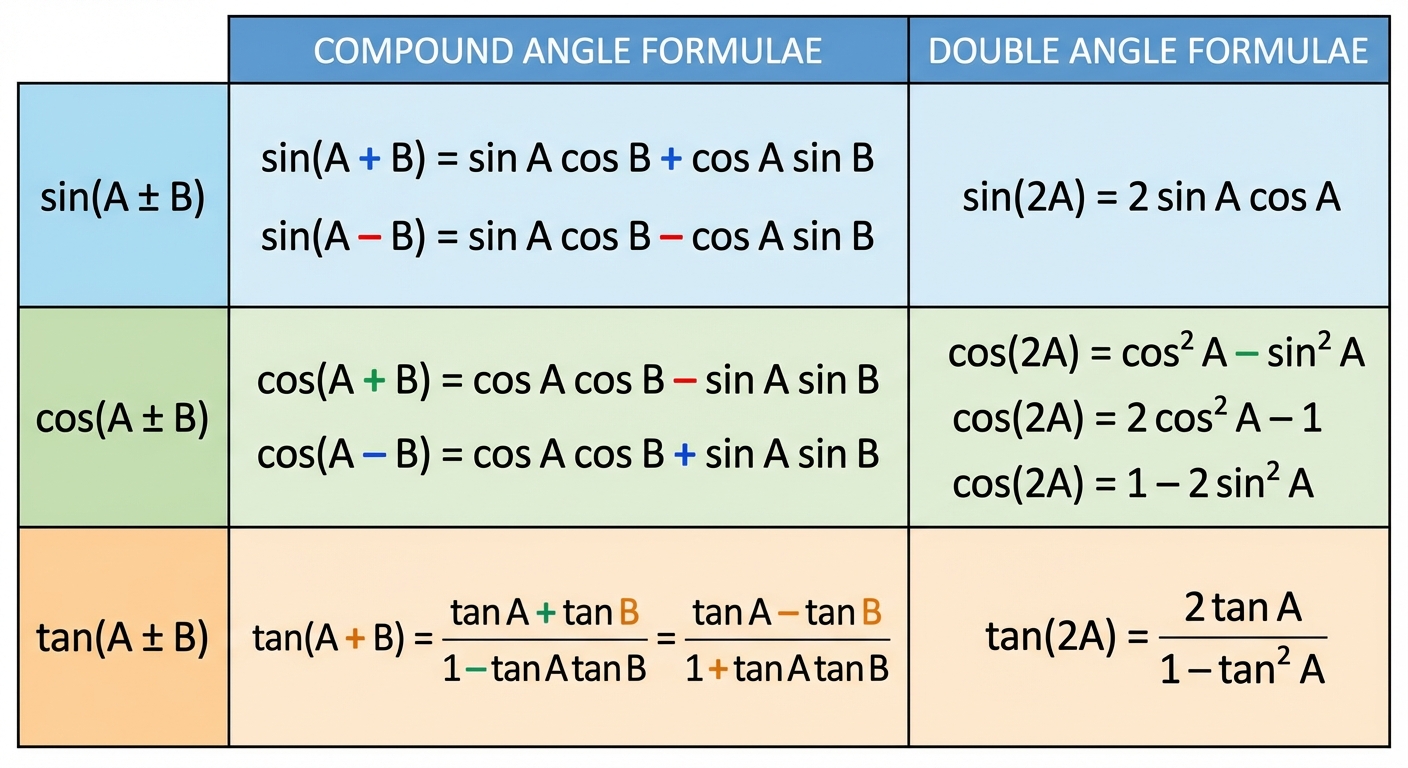

Alright, let's level up our trig game. You've mastered SOHCAHTOA and the unit circle, but what happens when you need to find the sine of two angles added together, like $\sin(A+B)$? Spoiler: it's not $\sin(A) + \sin(B)$! That's a classic exam trap. Instead, we use the Compound Angle Formulae. Think of them as the specific rules for how trig functions 'distribute' over addition or subtraction. These are your new best friends, so get them on a flashcard ASAP: $\sin(A \pm B) = \sin(A)\cos(B) \pm \cos(A)\sin(B)$ $\cos(A \pm B) = \cos(A)\cos(B) \mp \sin(A)\sin(B)$ (Notice the sign flip for cosine!) From these, we can derive the formula for tangent. By using the identity $\tan(\theta) = \frac{\sin(\theta)}{\cos(\theta)}$, we get: $\tan(A \pm B) = \frac{\tan(A) \pm \tan(B)}{1 \mp \tan(A)\tan(B)}$. Now, what if the two angles are the same? What if we want $\sin(A+A)$? This brings us to the Double Angle Formulae, which are just a special case of the compound ones where $A=B$. $\sin(2A) = 2\sin(A)\cos(A)$ $\cos(2A)$ is the real MVP because it has three variations. The main one is $\cos(2A) = \cos^2(A) - \sin^2(A)$. Using the Pythagorean identity $\sin^2(A) + \cos^2(A) = 1$, we can also write it as $2\cos^2(A) - 1$ or $1 - 2\sin^2(A)$. Choosing the right version is a key strategic skill for solving equations and proofs. Finally, we have $\tan(2A) = \frac{2\tan(A)}{1-\tan^2(A)}$. A clear, colour-coded summary table showing all six compound angle formulae (sin, cos, tan for both + and -) and all five double angle formulae (sin, the three for cos, and tan). Why care? This isn't just abstract math. In physics, these formulae are essential for analysing wave interference and superposition. In engineering, they're used in signal processing. And if you're heading into computer science or graphics, understanding how to manipulate angles like this is fundamental. Mastering these sets you up for success in your exams and in many STEM fields at university. 💪

Worked Example: Proving a Trigonometric Identity2.3

Problem Given that $x$ is an angle such that $\sin(x)\cos(x) \neq 0$, prove the identity $\frac{\sin(3x)}{\sin(x)} - \frac{\cos(3x)}{\cos(x)} \equiv 2$.

Step 1 First things first, let's deal with those fractions. The most direct approach is to combine them into a single fraction by finding a common denominator, which is $\sin(x)\cos(x)$. It's like adding $\frac{a}{b} - \frac{c}{d} = \frac{ad-bc}{bd}$. $$\frac{\sin(3x)\cos(x) - \cos(3x)\sin(x)}{\sin(x)\cos(x)}$$

Step 2 Now, look closely at that new numerator: $\sin(3x)\cos(x) - \cos(3x)\sin(x)$. Does it look familiar? It perfectly matches the pattern for the compound angle formula $\sin(A-B) = \sin(A)\cos(B) - \cos(A)\sin(B)$, where $A=3x$ and $B=x$. $$\sin(3x-x) = \sin(2x)$$

Step 3 Let's substitute this simplified expression back into our main fraction. We've made the numerator much cleaner, which is a huge win. $$\frac{\sin(2x)}{\sin(x)\cos(x)}$$

Step 4 We're almost there! The expression now involves a $2x$ and single $x$ angles. The goal is to make everything consistent. We can use the double angle formula for sine, $\sin(2A) = 2\sin(A)\cos(A)$, to expand the numerator. $$\frac{2\sin(x)\cos(x)}{\sin(x)\cos(x)}$$

Step 5 The final step is pure satisfaction. The $\sin(x)\cos(x)$ term appears on both the top and bottom, so we can cancel them out, leaving us with our target value. Mission complete! $$2 = \text{RHS} \quad (\text{as required})$$

Expressing asinθ + bcosθ in Harmonic Form2.3

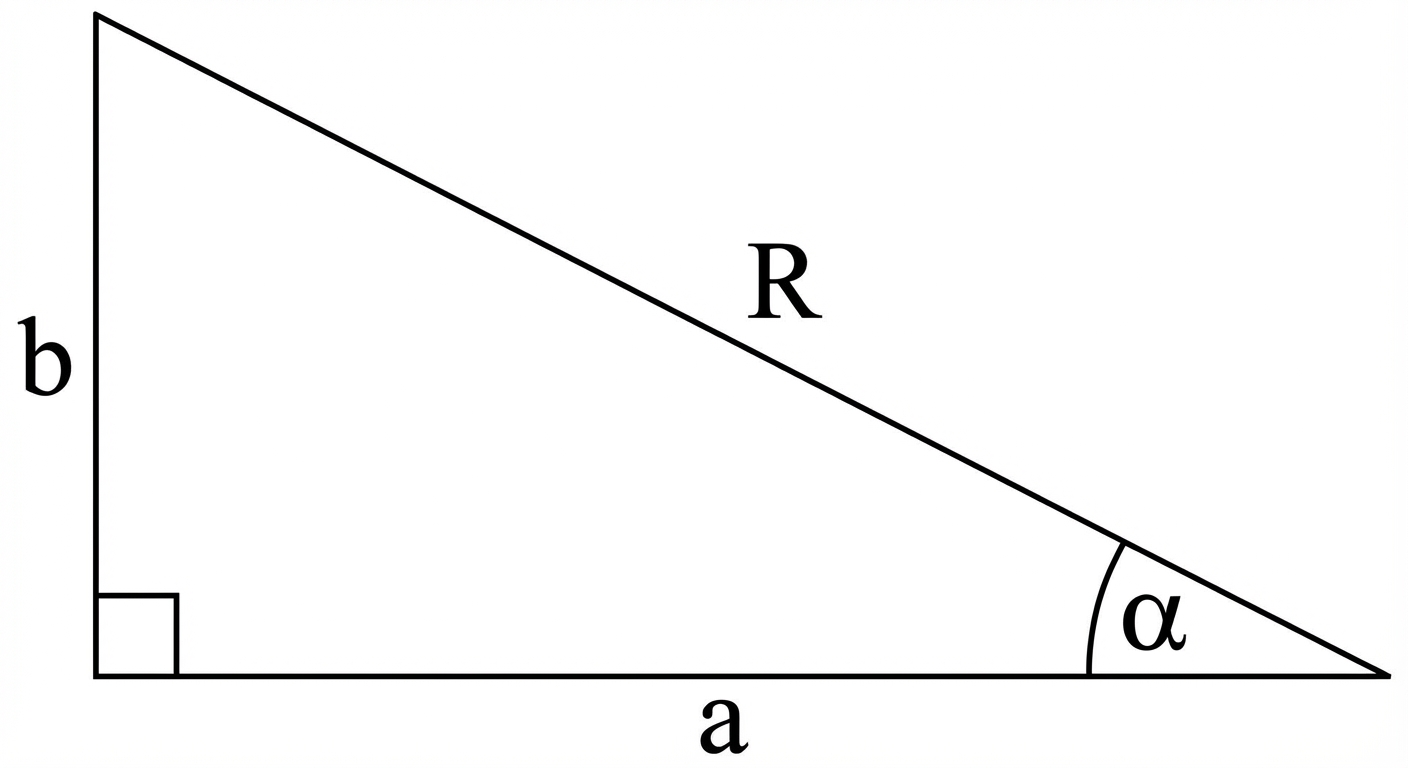

Alright, let's tackle one of the most powerful tools in your P2 arsenal: the R-Formula, or Harmonic Form. Think of it like a DJ mixing two separate, slightly chaotic sine and cosine tracks, $a\sin\theta$ and $b\cos\theta$, into one clean, predictable sine (or cosine) wave. This single wave is much easier to analyse and solve. The goal is to convert an expression like $a\sin\theta + b\cos\theta$ into the form $R\sin(\theta \pm \alpha)$ or $R\cos(\theta \pm \alpha)$. Why bother? Because this trick is a gateway to solving complex equations and finding maximum/minimum values, which is not just an exam favourite, but fundamental in fields like physics (wave mechanics) and electrical engineering (analysing AC circuits). So how do we do it? Let's take $a\sin\theta + b\cos\theta$ and aim for $R\sin(\theta + \alpha)$. We start by expanding $R\sin(\theta + \alpha)$ using the compound angle formula you already know: $$R\sin(\theta + \alpha) = R(\sin\theta\cos\alpha + \cos\theta\sin\alpha) = (R\cos\alpha)\sin\theta + (R\sin\alpha)\cos\theta$$ Now, we just play a game of 'match the coefficients' with our original expression, $a\sin\theta + b\cos\theta$. By comparing them, we can see that we need $a = R\cos\alpha$ and $b = R\sin\alpha$. This is the key insight! A right-angled triangle showing the relationship between a, b, and R. The adjacent side is labelled 'a', the opposite side is 'b', the hypotenuse is 'R', and the angle between the adjacent and hypotenuse is 'α'. This setup allows us to find $R$ and $\alpha$. To find $R$, we use Pythagoras' Theorem: $(R\cos\alpha)^2 + (R\sin\alpha)^2 = a^2 + b^2$, which simplifies to $R^2 = a^2 + b^2$, so $R = \sqrt{a^2 + b^2}$. Remember, $R$ is an amplitude, so it's always positive. To find $\alpha$, we can divide our two equations: $\frac{R\sin\alpha}{R\cos\alpha} = \frac{b}{a}$, which gives us $\tan\alpha = \frac{b}{a}$. Once you've converted your expression to $R\sin(\theta + \alpha)$, finding the maximum value is a piece of cake – it's just $R$ (since the max value of sine is 1). Solving an equation like $a\sin\theta + b\cos\theta = c$ becomes as simple as solving $\sin(\theta+\alpha) = \frac{c}{R}$. This is a massive upgrade in efficiency and a critical skill for your exams and beyond. 💪

Worked Example: Application of the R-Formula2.3

Problem (a) Express $4\sin\theta + \cos\theta$ in the form $R\cos(\theta - \alpha)$, where $R > 0$ and $0^\circ < \alpha < 90^\circ$, giving the value of $\alpha$ correct to 2 decimal places. (b) Hence, solve the equation $4\sin\theta + \cos\theta = 3$ for $0^\circ \le \theta \le 360^\circ$.

Step 1 First, we expand the target form $R\cos(\theta - \alpha)$ using the compound angle formula and then compare the coefficients with our given expression, $4\sin\theta + \cos\theta$. $$R\cos(\theta - \alpha) = R(\cos\theta\cos\alpha + \sin\theta\sin\alpha) = (R\cos\alpha)\cos\theta + (R\sin\alpha)\sin\theta$$ Comparing with $1\cos\theta + 4\sin\theta$, we get: $R\cos\alpha = 1$ $R\sin\alpha = 4$

Step 2 Now we can find the values of $R$ and $\alpha$. We use Pythagoras' theorem for $R$ and the tangent ratio for $\alpha$. $$R = \sqrt{1^2 + 4^2} = \sqrt{1+16} = \sqrt{17}$$ $$\tan\alpha = \frac{R\sin\alpha}{R\cos\alpha} = \frac{4}{1} = 4$$ $$\alpha = \arctan(4) \approx 75.96^\circ$$ So, $4\sin\theta + \cos\theta = \sqrt{17}\cos(\theta - 75.96^\circ)$

Step 3 For part (b), we substitute our new harmonic form into the equation. This makes it a much simpler equation to handle. $$\sqrt{17}\cos(\theta - 75.96^\circ) = 3$$ $$\cos(\theta - 75.96^\circ) = \frac{3}{\sqrt{17}}$$

Step 4 We find the principal value for the angle by taking the inverse cosine. Let's call our new angle $\beta = \theta - 75.96^\circ$. $$\beta = \arccos\left(\frac{3}{\sqrt{17}}\right)$$ $$ \text{Principal Value: } \beta \approx 43.31^\circ$$

Step 5 The cosine function is positive in the first and fourth quadrants. We need to find all solutions for $\beta$ within the adjusted range for $\theta$. The original range is $0^\circ \le \theta \le 360^\circ$, so the new range for $\beta$ is $-75.96^\circ \le \beta \le 284.04^\circ$. $$\text{1st Quadrant Solution: } \beta_1 = 43.31^\circ$$ $$\text{4th Quadrant Solution: } \beta_2 = 360^\circ - 43.31^\circ = 316.69^\circ$$ Notice that $\beta_2$ is outside our adjusted range. The other 4th quadrant angle is $-43.31^\circ$, which is in our range. So our two solutions for $\beta$ are $43.31^\circ$ and $-43.31^\circ$.

Step 6 Finally, we convert our solutions for $\beta$ back to $\theta$ using $\theta = \beta + 75.96^\circ$ and round to 1 decimal place as is standard practice. $$\theta_1 = 43.31^\circ + 75.96^\circ = 119.27^\circ \approx 119.3^\circ$$ $$\theta_2 = -43.31^\circ + 75.96^\circ = 32.65^\circ \approx 32.7^\circ$$ Final answers: $\theta = 32.7^\circ, 119.3^\circ$

Key Points to Remember

The reciprocal functions are your new best friends: $\sec(x) = \frac{1}{\cos(x)}$, $\csc(x) = \frac{1}{\sin(x)}$, and $\cot(x) = \frac{1}{\tan(x)}$. Don't forget their corresponding Pythagorean identities: $1 + \tan^2(x) = \sec^2(x)$ and $1 + \cot^2(x) = \csc^2(x)$.
The compound angle formulae (like $\sin(A+B)$) are in the formula book, but you must know how to derive and confidently use the double angle formulae for $\sin(2A)$, $\cos(2A)$, and $\tan(2A)$. Remember the three different forms for $\cos(2A)$ – they are crucial!
The R-formula transforms expressions of the form $a\sin(\theta) \pm b\cos(\theta)$ into $R\sin(\theta \pm \alpha)$ or $R\cos(\theta \mp \alpha)$, where $R = \sqrt{a^2 + b^2}$. This is your go-to method for solving equations of this type and finding max/min values of trig functions.
