Wave Properties and the Wave EquationE3.1

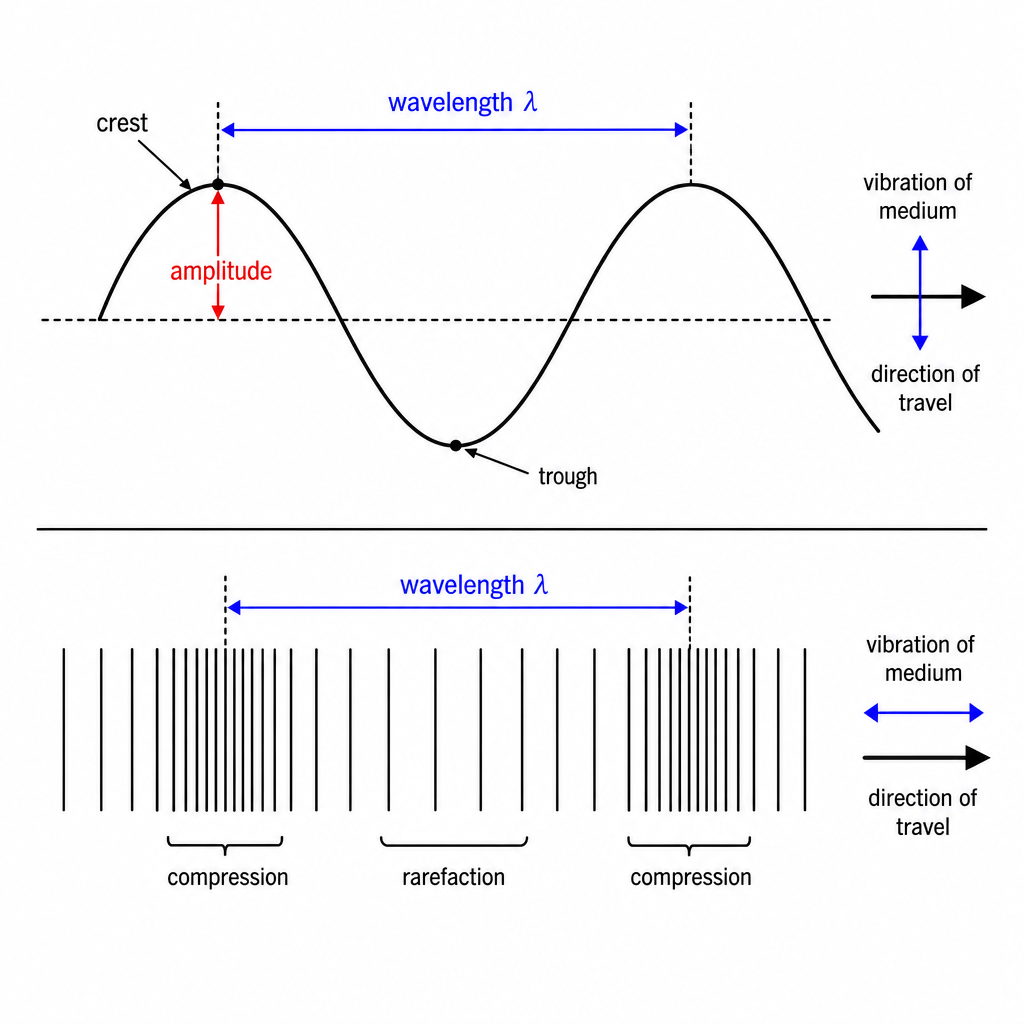

A wave is a vibration that carries energy from place to place without carrying the matter along: a cork on the sea bobs up and down while the wave travels past it. In a transverse wave the vibration is at right angles to the direction of travel (light, water ripples); in a longitudinal wave it is along the direction of travel (sound). The repeating shape gives you the toolkit words: wavelength $\lambda$ (one full cycle), amplitude (size of the swing), frequency $f$ (cycles per second, in Hz). Send a wave through a narrow gap and it spreads out the other side: diffraction, strongest when the gap is about the same size as $\lambda$.

> 🔑 Key formula: $v = f\lambda$ — wave speed = frequency × wavelength. Units: $v$ in m/s, $f$ in Hz, $\lambda$ in m. Diffraction spreads most when gap ≈ $\lambda$.

Worked Example: Wave Speed from Frequency and WavelengthE3.1

Problem Ripples on a pond have a wavelength of $0.40$ m and you count $5$ crests passing a post every second. Find the wave speed.

Step 1 "Five crests per second" is the frequency: $f = 5$ Hz. Wavelength $\lambda = 0.40$ m.

Step 2 Apply the wave equation:

Sanity check: a couple of metres per second is a believable pond-ripple speed. Note the same equation runs for any wave: plug $f = 100$ MHz and $v = 3 \times 10^8$ m/s for an FM radio wave and you get $\lambda = 3$ m, the length of the aerial it needs.

$$v = f\lambda = 5 \times 0.40 = 2.0 \text{ m/s}$$

Reflection of LightE3.2.1

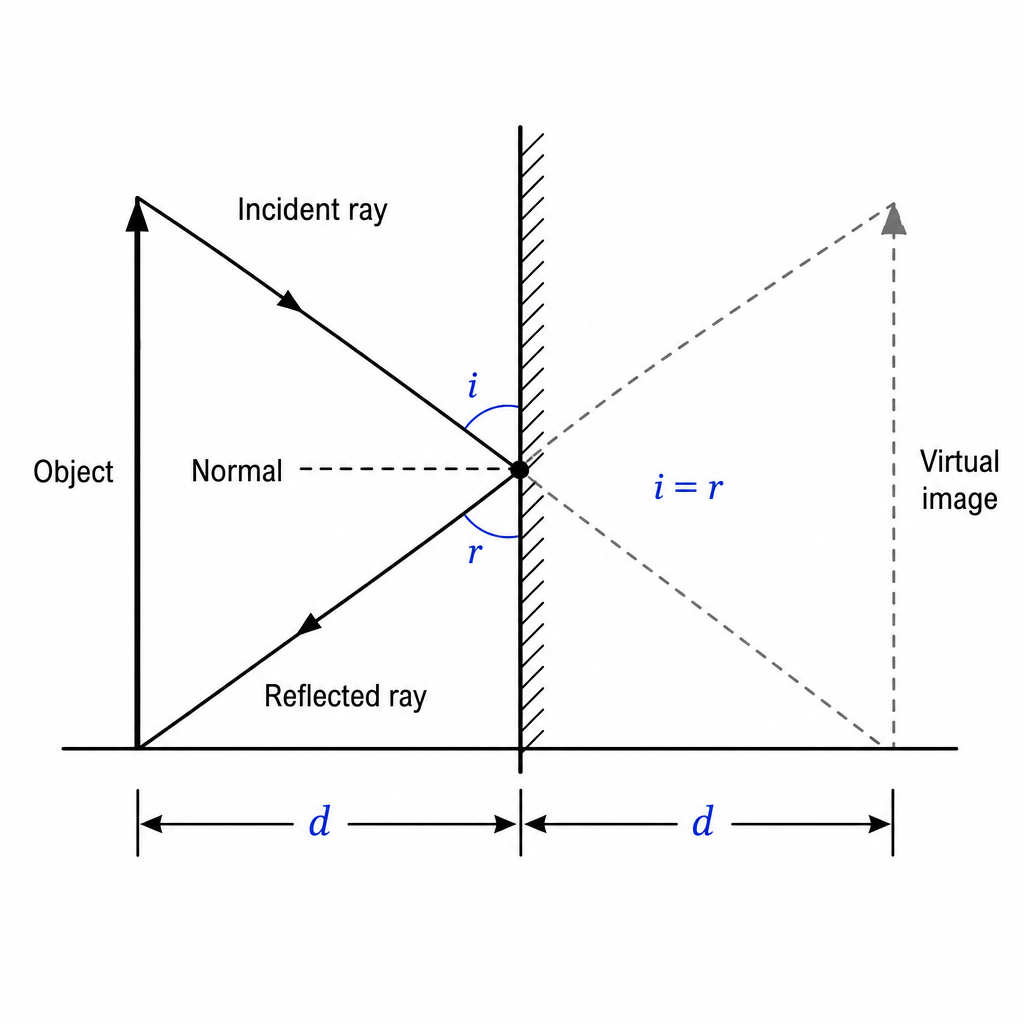

Light bounces off a surface following one rule: the angle of incidence equals the angle of reflection, both measured from the normal (the line at $90°$ to the surface), not from the surface itself. A plane mirror makes an image that is the same size as the object, the same distance behind the mirror as the object is in front, upright, laterally inverted (left-right swapped), and virtual — it only seems to come from behind the glass; no light actually gathers there.

> 🔑 Key idea: Angle of incidence = angle of reflection (both from the normal). Plane-mirror image: same size, same distance behind, upright, virtual.

Worked Example: Reflected Ray from a MirrorE3.2.1

Problem A ray hits a plane mirror making $30°$ with the mirror surface. What is the angle of reflection, measured from the normal?

Step 1 The normal is $90°$ to the surface, so the angle of incidence from the normal is $90 - 30 = 60°$. Reflection equals incidence, so the angle of reflection is also $60°$. Always convert "angle to the surface" into "angle to the normal" first.

Refraction and Total Internal ReflectionE3.2.2

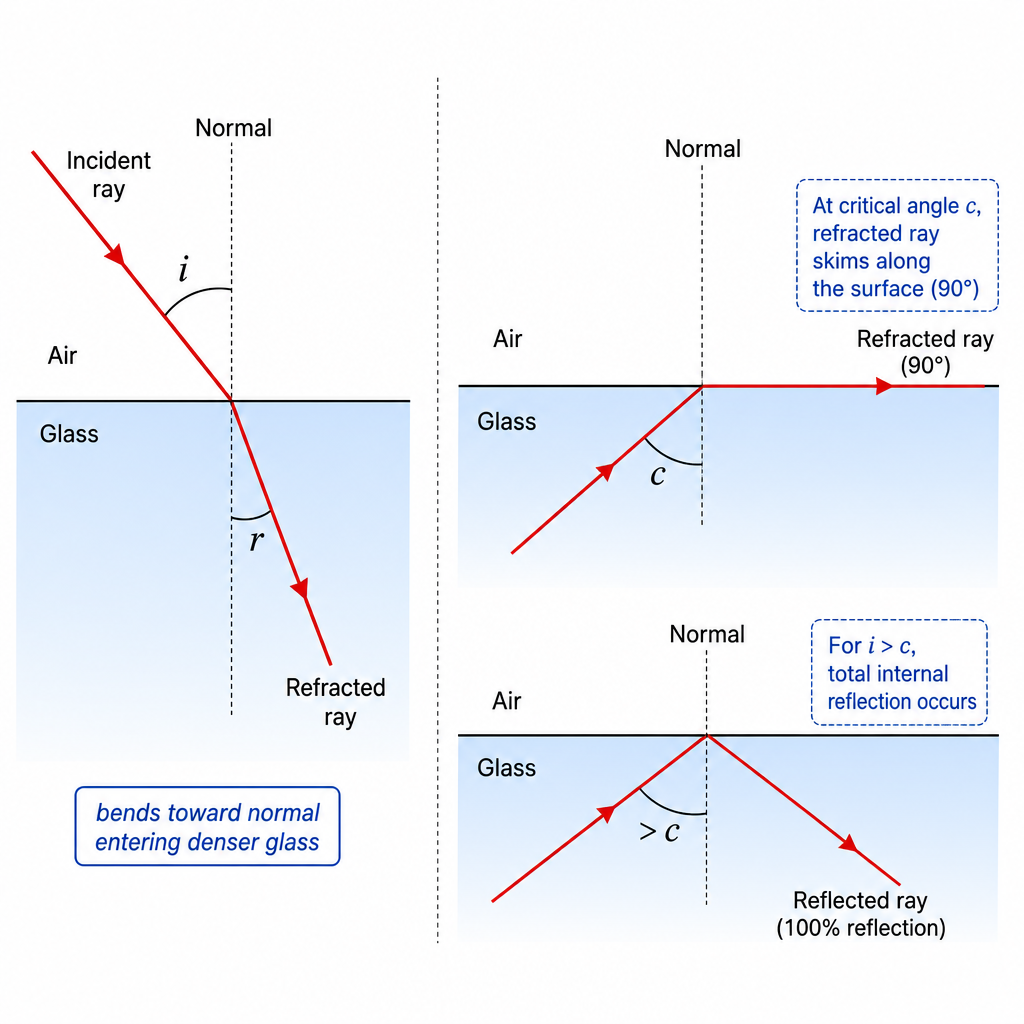

Light changes speed when it crosses into a new material, and that speed change bends it: entering a denser medium (air → glass) it slows and bends toward the normal; leaving it bends away. The refractive index $n$ measures how much: $n = \sin i / \sin r$, also equal to the ratio of the wave speeds. Push the angle inside the dense medium big enough and the refracted ray can't escape at all: beyond the critical angle $c$ all the light reflects back inside. That's total internal reflection (TIR), and it's how optical fibres pipe internet light around bends without leaking.

> 🔑 Key formulas: $n = \dfrac{\sin i}{\sin r}$ and $\sin c = \dfrac{1}{n}$. Bigger $n$ = slower light = smaller critical angle. TIR needs the ray inside the denser medium and angle > $c$.

Worked Example: Critical Angle of GlassE3.2.2

Problem A glass has refractive index $n = 1.5$. Find its critical angle, and state what happens to a ray inside the glass that meets the surface at $50°$.

Step 1 Use $\sin c = 1/n$: $$\sin c = \frac{1}{1.5} = 0.667 \implies c = \sin^{-1}(0.667) = 41.8° \approx 42°$$

Step 2 The ray meets the surface at $50°$, which is greater than the critical angle of $42°$, so it cannot refract out: it undergoes total internal reflection and bounces back into the glass. This is exactly the condition exploited inside an optical fibre, where light hits the wall well above $c$ at every bounce.

Thin LensesE3.2.3

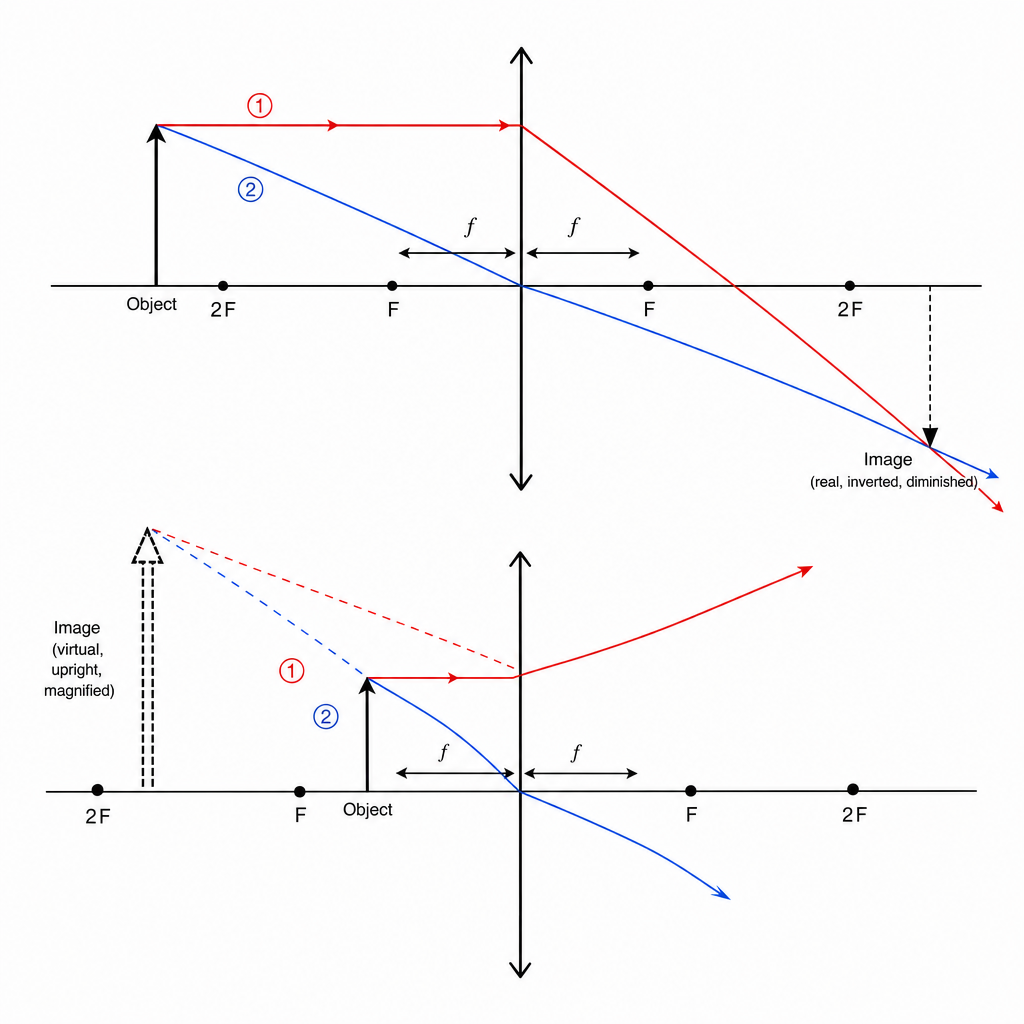

A converging (convex) lens bends parallel rays inward to meet at the principal focus, a distance $f$ (the focal length) from the lens; a diverging (concave) lens spreads them out. To find the image of an object, draw two standard rays: one parallel to the axis (refracts through the focus) and one straight through the centre (undeviated). Where they cross is a real image (you can catch it on a screen, it's inverted). If the object is inside the focal length the rays come out diverging and only appear to meet behind the lens: that's a virtual, upright, enlarged image, the magnifying-glass effect.

> 🔑 Key idea: Real image = rays actually cross (inverted, catchable on a screen). Virtual image = back-projected rays meet (upright, can't be projected). Object inside $f$ on a converging lens → magnifier.

Worked Example: Reading a Lens Ray DiagramE3.2.3

Problem An object stands beyond twice the focal length ($2f$) of a converging lens. Describe the image: real or virtual, upright or inverted, enlarged or diminished?

Step 1 Drawing the parallel ray (through far focus) and the centre ray, they cross on the far side between $f$ and $2f$. Because the rays genuinely cross, the image is real and inverted, and because it forms closer to the lens than the object, it is diminished (smaller). This is exactly how a camera lens images a distant scene onto a small sensor.

Dispersion of LightE3.2.4

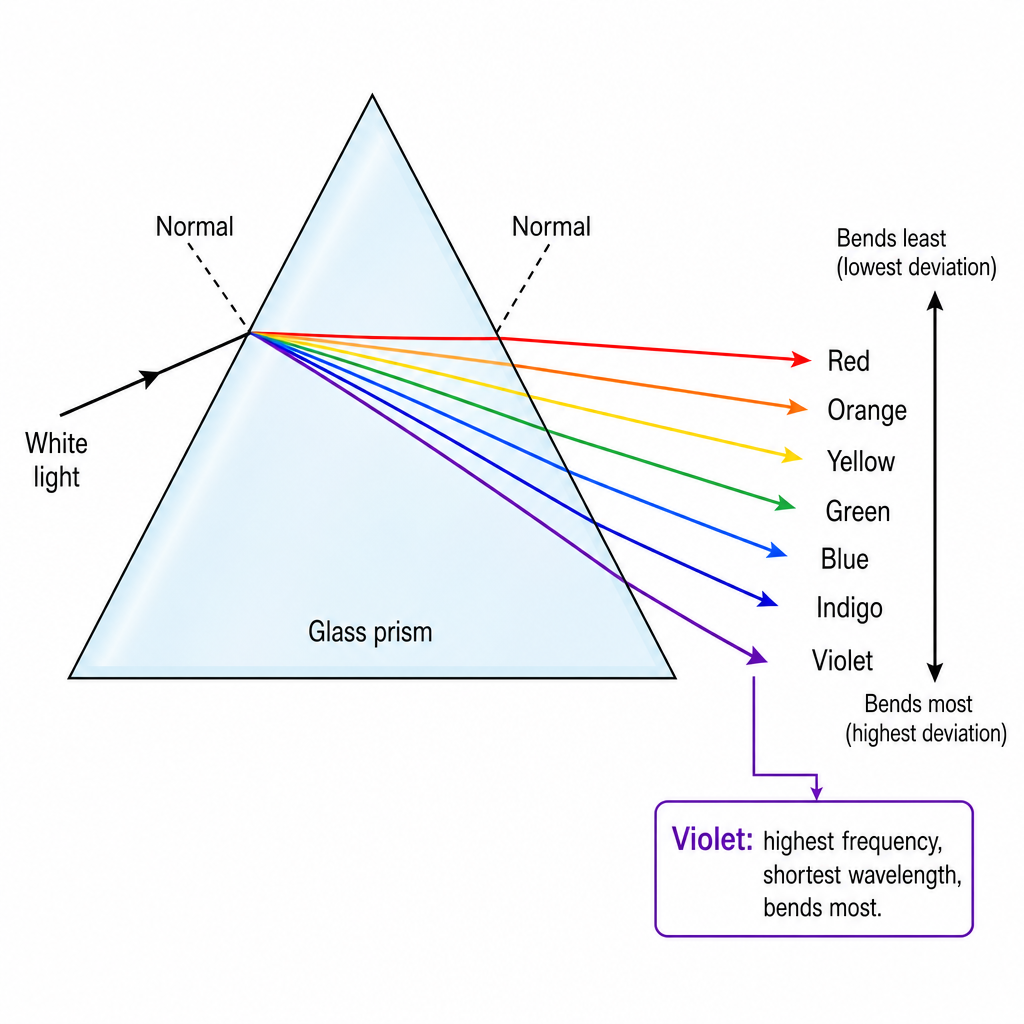

White light is a mix of all colours, and a glass prism refracts each colour by a slightly different amount (violet bends most, red least, because the glass's refractive index is slightly higher for shorter wavelengths). The colours fan out into the visible spectrum: red, orange, yellow, green, blue, indigo, violet — increasing in frequency and decreasing in wavelength from red to violet. Light of a single frequency is monochromatic (like a laser) and cannot be split further by a prism.

> 🔑 Key idea: Prism splits white light because $n$ differs per colour. Order by increasing frequency: red → violet. Monochromatic light (one frequency) does not disperse.

Worked Example: Why a Red Laser Won't SplitE3.2.4

Problem White light through a prism makes a spectrum, but a red laser beam through the same prism comes out as a single red spot (just shifted). Why?

Step 1 Dispersion needs more than one frequency to fan apart. A red laser is monochromatic — one single frequency — so the prism refracts all of it by the same amount. It bends (refracts) but it cannot spread into a spectrum because there are no other colours present to separate.

The Electromagnetic SpectrumE3.3

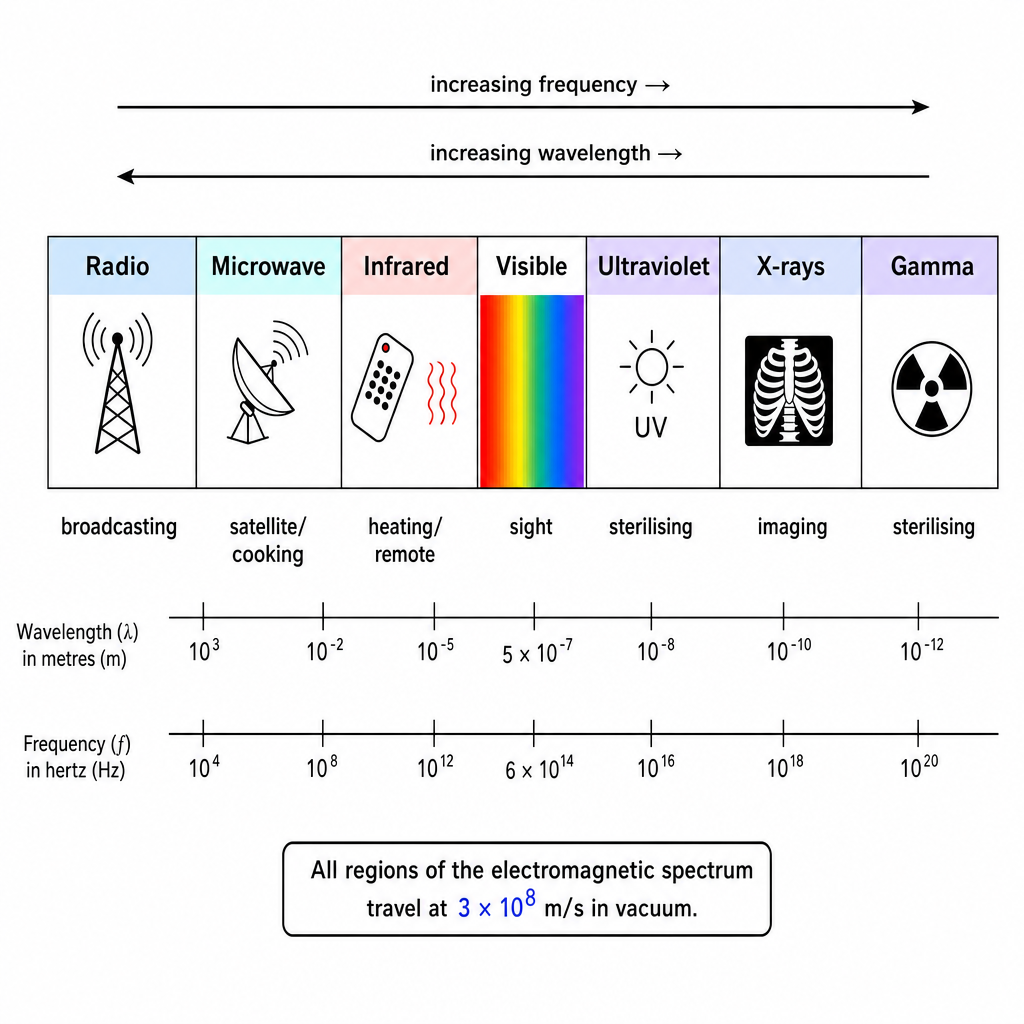

All electromagnetic (EM) waves are transverse and travel through a vacuum at the same speed, $3.0 \times 10^8$ m/s (the speed of light). They differ only in frequency and wavelength, running from low-frequency long-wavelength radio up to high-frequency short-wavelength gamma: radio → microwave → infrared → visible → ultraviolet → X-rays → gamma. Each region has uses (radio/TV, microwave cooking and satellite/phone links, infrared remotes and heating, visible sight, UV sterilising, X-ray imaging, gamma sterilising) and high-frequency exposure carries dangers (UV skin damage, X-ray/gamma cell mutation).

> 🔑 Key idea: Order (low→high frequency): radio, microwave, infrared, visible, UV, X-ray, gamma. All travel at $3.0 \times 10^8$ m/s in a vacuum. Higher frequency = more energy = more dangerous.

Worked Example: Match the Region to the UseE3.3

Problem Name the EM region used for (a) checking a broken bone, (b) a TV remote control, (c) communicating with a satellite.

Step 1 (a) X-rays pass through soft tissue but not bone, so they image the skeleton. (b) Infrared carries the short-range remote signal. (c) Microwaves pass cleanly through the atmosphere and are used for satellite and mobile-phone links. Match by remembering the order and each band's everyday job.

Sound WavesE3.4

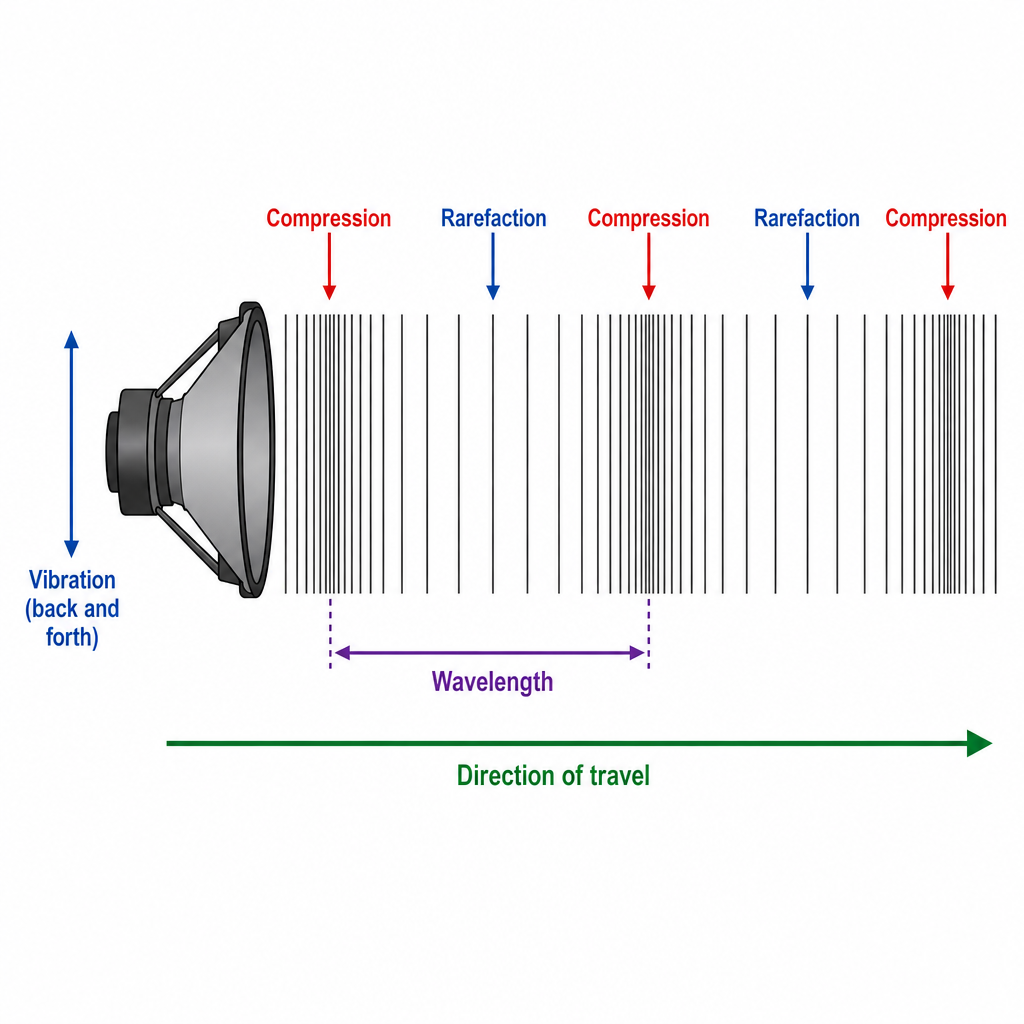

Sound is a longitudinal wave made by a vibrating source pushing the particles of a medium into compressions (squashed together) and rarefactions (spread apart). It needs a medium, so it cannot travel through a vacuum, and it travels faster in solids than liquids, and faster in liquids than gases (≈ $330$–$350$ m/s in air) because tightly-bonded particles pass the vibration on quicker. Amplitude sets loudness, frequency sets pitch; the human audible range is about $20$ Hz to $20\,000$ Hz, and anything above $20$ kHz is ultrasound (used in sonar, scanning and cleaning). An echo is simply reflected sound.

> 🔑 Key idea: Sound = longitudinal, needs a medium, speed: solids > liquids > gases. Amplitude → loudness, frequency → pitch. Audible $20$ Hz–$20$ kHz; ultrasound > $20$ kHz. Echo = reflected sound.

Worked Example: Sonar Depth of the Sea FloorE3.4

Problem A ship sends an ultrasound pulse straight down and hears the echo $0.30$ s later. Sound travels at $1500$ m/s in seawater. How deep is the sea floor?

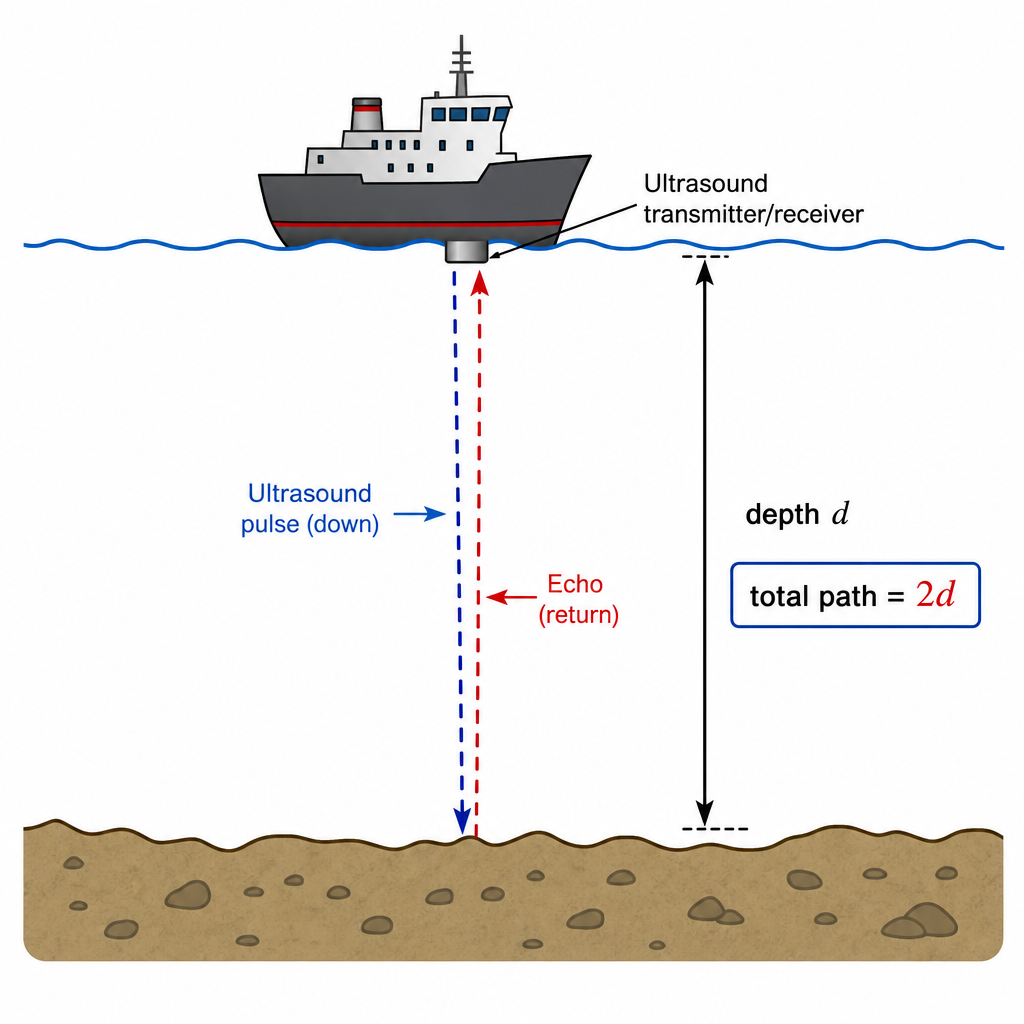

Step 1 The pulse travels down and back, so the distance covered is $2d$. Use distance = speed × time: $$2d = v \times t = 1500 \times 0.30 = 450 \text{ m}$$

Step 2 Halve it for the one-way depth:

Sanity check: the classic trap is forgetting the factor of two — the echo records a round trip. Always halve. The same "halve the round trip" logic finds the speed of sound from a clap echo off a distant wall.

$$d = \frac{450}{2} = 225 \text{ m}$$

Key Points to Remember

• Waves transfer energy, not matter. Transverse = vibration $\perp$ travel (light); longitudinal = vibration $\parallel$ travel (sound). Use $v = f\lambda$. Diffraction spreads most when gap ≈ $\lambda$.
• Reflection: angle of incidence = angle of reflection (from the normal). Plane-mirror image is same-size, same-distance-behind, upright, virtual.
• Refraction bends light when its speed changes; $n = \sin i / \sin r$. Beyond the critical angle ($\sin c = 1/n$) light totally internally reflects — the basis of optical fibres.
• Converging lens: real inverted image when object is beyond $f$; virtual upright magnified image when object is inside $f$. Diverging lens always gives a virtual image.
• White light disperses in a prism (violet bends most); monochromatic light does not. The EM spectrum (radio → gamma) all travels at $3.0 \times 10^8$ m/s in a vacuum; higher frequency carries more energy and more danger.
• Sound is longitudinal, needs a medium, and is fastest in solids. Amplitude → loudness, frequency → pitch. For echoes and sonar the pulse travels there and back, so halve the round-trip distance.
